1500W Air Cooling Laser Welder Handheld Fiber Laser Welding Machine 4 in 1 Cutting Welding Cleaning for Metal Air Cooled Laser Function

condition : New

Output Power : 2000W

usage : welding

place of origin : China

warranty : 3 years

laser source brand : RAYCUS

weight (kg) : 40 KG

key selling points : Easy to Operate

Product name : Handheld Laser Welding Machine

Function : Metal Part Laser Welding

Application : Welding Products

Laser type : RAYCUS

Keywords : High-quality Laser Welding Machine

Laser power : 1000W 2000W 1500W 3000W (optional)

Application material : Metal Stainless Steel Aluminum

Welding mode : Manual Handheld

Applicable Industries : Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, hotels

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Marketing Type : New Product 2020

Warranty of core components : 1 Year

Core Components : Gear, Bearing, motor, Pressure vessel, Other

Price : CN¥5,763.68-7,204.60/sets

Contact Now

Air-cooling1500W/2000W Portable Handheld Laser Welding Machine
This Air-cooling 2000W Portable Handheld Laser Welding Machine is a revolutionary tool in the field of metalworking, combining power, versatility, and safety in a compact, user-friendly package. Whether for industrial or personal use, it stands as a testament to modern welding technology's capabilities.
Key Features:
Ultra-Long Life XH Pump: This portable laser welding machine is equipped with an ultra-long life XH pump, ensuring durability and consistent performance for various applications.
Versatile Applications: Ideal for metal processing stations, construction and plumbing, body in white applications, aviation and transportation, as well as maintenance and repair.
High Pump Power and Input Power: Boasts a pump power of 2200W and an input power of 220V single phase, 24A, delivering robust performance for heavy-duty tasks.
Adjustable Swing Width and Frequency: Features a swing width of 5mm and a frequency of 120HZ, allowing for precise control during welding operations.
Compact and Lightweight: Measures 498x532x256mm and weighs 41kg, making it a convenient and portable solution for on-site welding tasks.
Diverse Welding Materials Compatibility:
Stainless Steel: Single-sided penetration up to 5mm, double-sided up to 10mm.
Galvanized Sheet: Single-sided penetration up to 5mm, double-sided up to 10mm.
Carbon Steel: Single-sided penetration up to 5mm, double-sided up to 10mm.
Aluminum: Single-sided penetration up to 4mm, double-sided up to 8mm.
Brass: Single-sided penetration up to 3mm, double-sided up to 6mm.
Red Copper: Single-sided penetration up to 2mm, double-sided up to 4mm.
Parameters
Parameters
Laser System
RL-MINI-1500W
RL-MINI-2000W
Laser Type
1080nm Fiber Laser
Laser Power
1500W
2000W
Cooling System
Water Cooling
Way of working
Continuous / Modulation
Laser source
MAX/Raycus/BWT
Laser head
Dual Axis
Speed range of welder
0~120 mm/s
Focal Spot Diameter
0.5mm
Ambient temperature range
10~40℃
Environmental humidity range
<70% without condensation
Welding thickness
0.5-3mm
Welding gap requirements
≤1.2mm
Operating Voltage
220±10% V AC, 50/60Hz
Machine Dimensions
745*516*710mm
Packing Weight

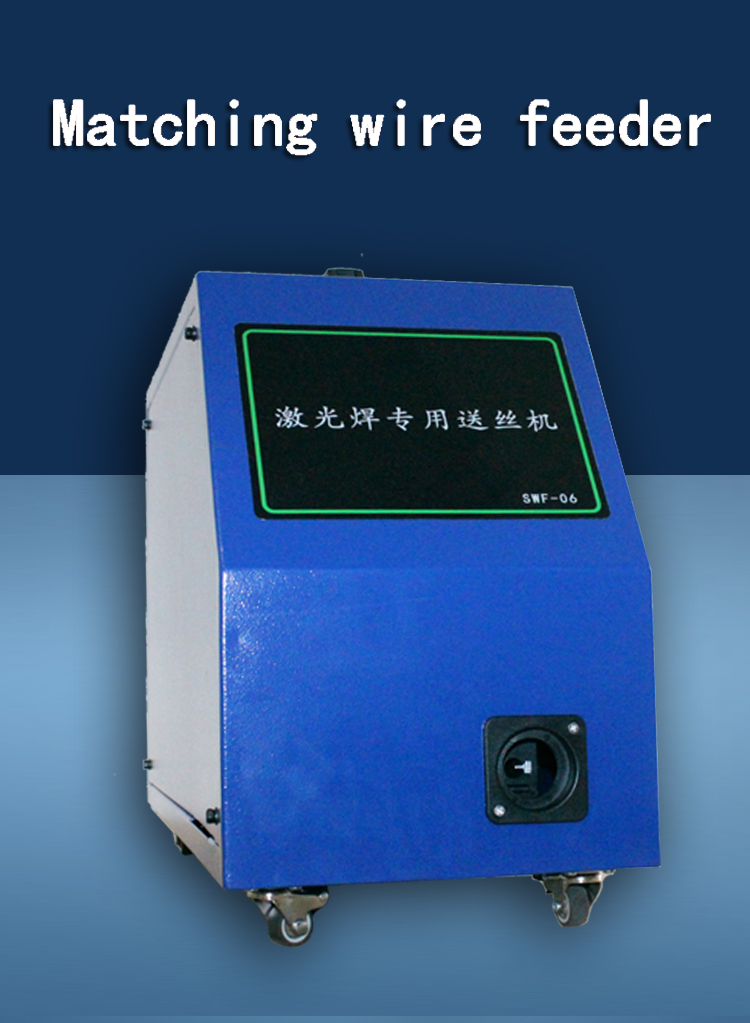

160kg with auto wire feeder
Fiber length
Standard 10m, the longest customized length15m
Welding penetration parameters
Material
Output power (W)
Maximum penetration (mm)
Stainless steel
1500
0.5-4
Stainless steel
2000
0.5-6
Carbon steel
1500
0.5-4
Carbon steel
2000
0.5-6
Aluminum alloy
1500
0.5-3
Aluminum alloy
2000
0.5-4.5
Galvanized sheet
1500
0.5-3
Galvanized sheet
2000
0.5-4.5
